Midea CDC / Team (Designer)
Role: PI Editorial; Product Design; CAD Modeling; CMF; Late-stage Finalization
Design for SERVOTRONIX - Launch and production in 2023

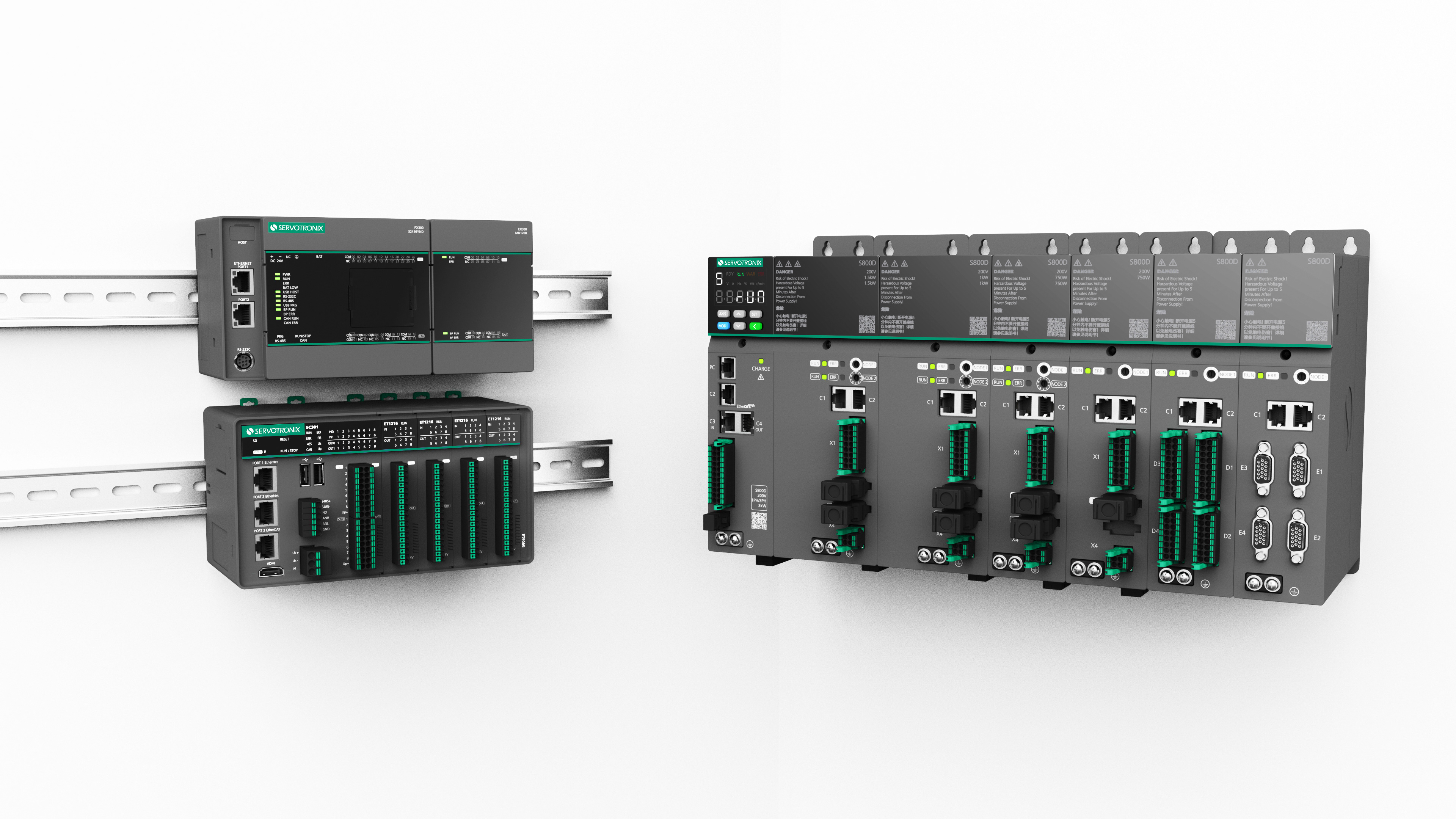

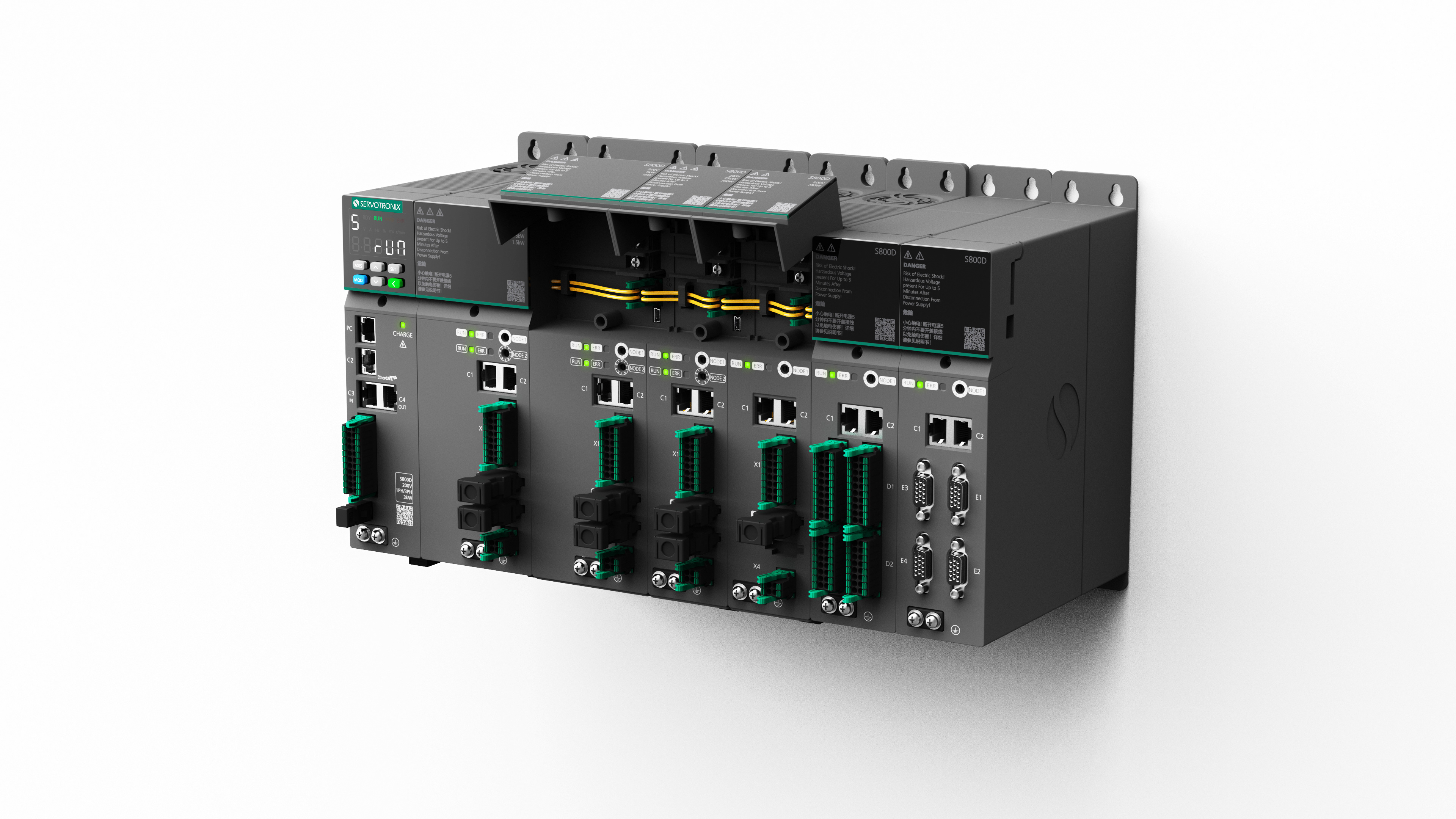

The overall body is simple and coherent thanks to the highly unified design of each module. The contrast between dark tone grey body and black display area offers a professional and high-tech appearance to the product. The iconic Servotronix brand color stripe visually connects all the modules together which matches the Servotronix slogan “Always in Motion” and also gives the product a highly recognizable brand image.
由于每个模块的高度统一设计，整体机身简单而连贯。深色调的灰色机身和黑色显示区域的对比为产品提供了专业和高科技的外观。标志性的Servotronix品牌色条在视觉上将所有模块连接在一起，这与Servotronix的口号 "永远在运动 "相吻合，同时也为产品提供了一个高度可识别的品牌形象。
BRAND DESIGN PHILOSOPHY

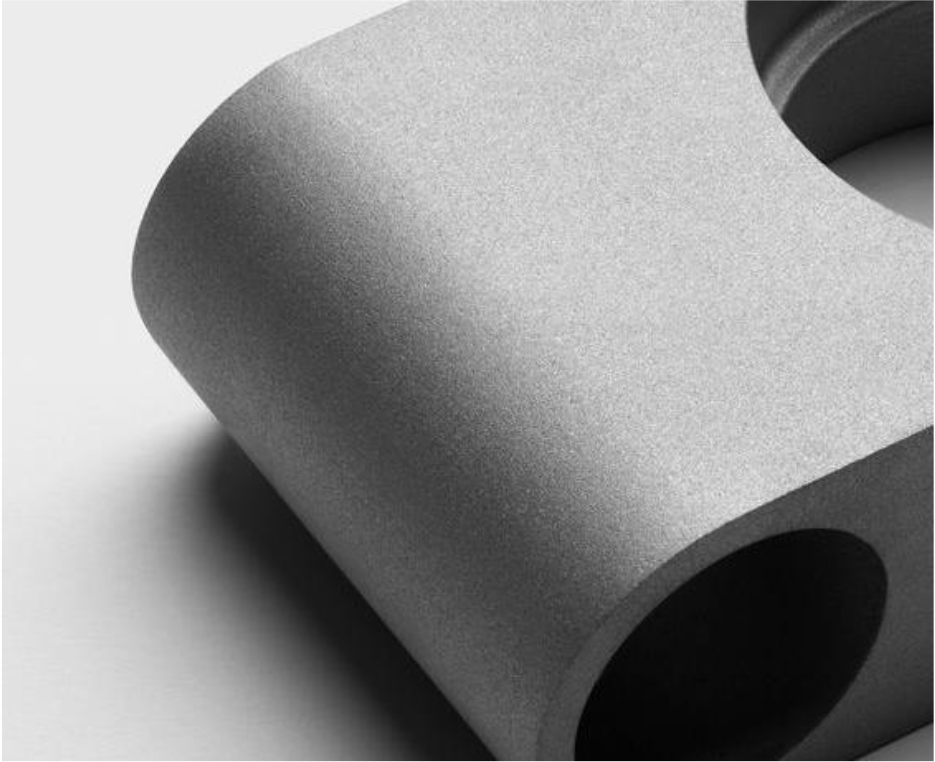

耐用 Durable

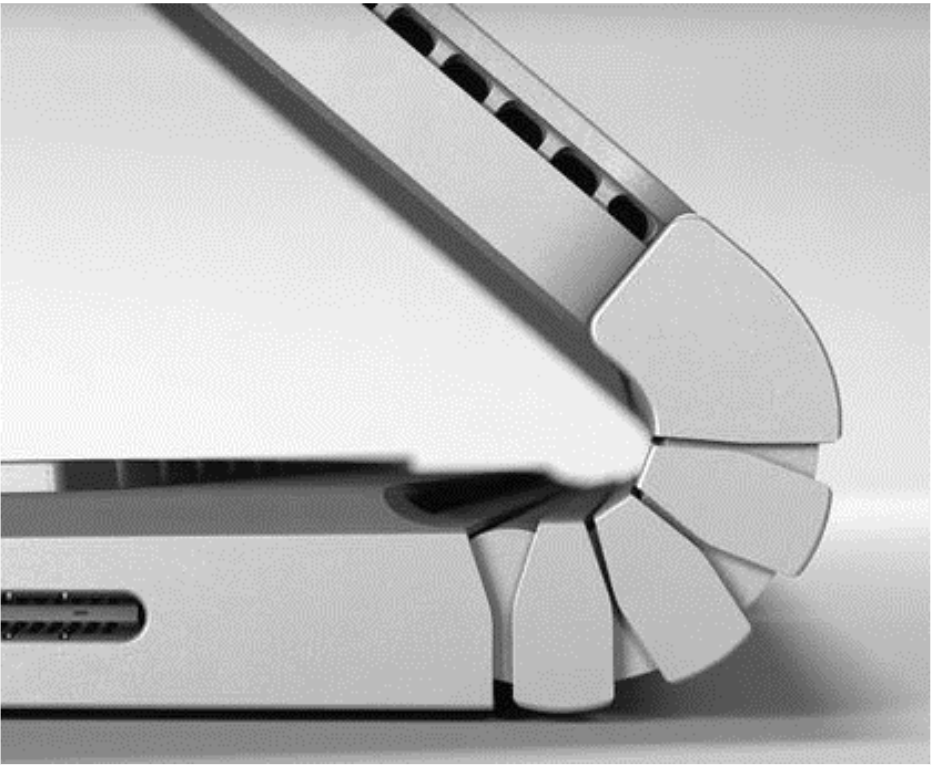

精妙 Intuitive

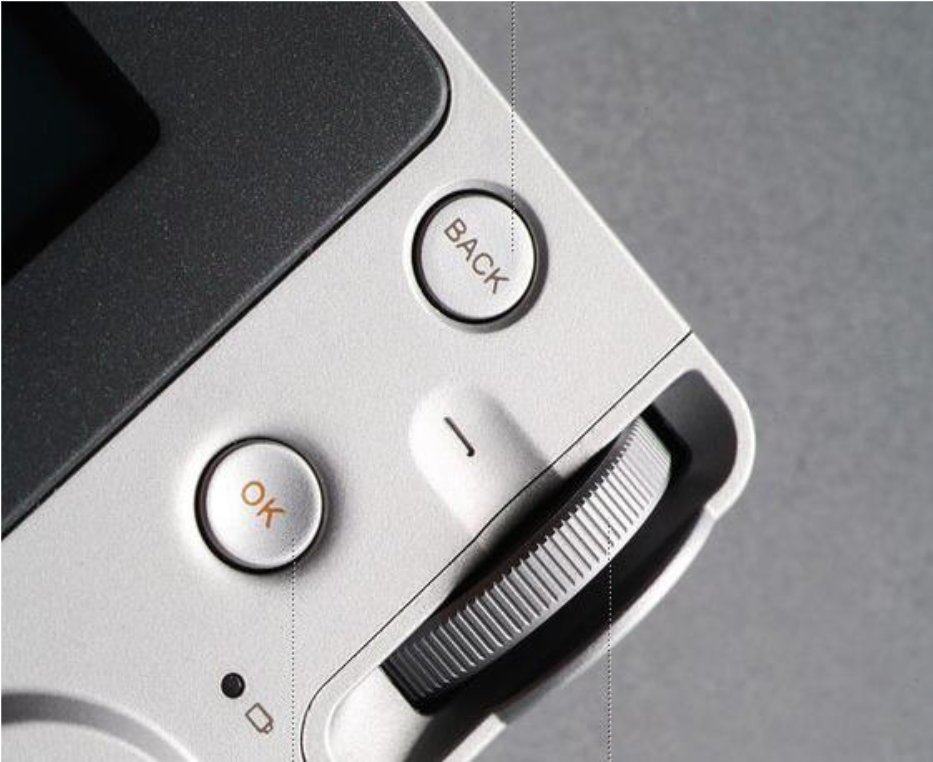

理性 Rational
Servotronix maintains the consistency of brand style through design languages, so as to improve the brand image of Servotronix products.
高创控制品牌通过如实体量、留白空间、反馈触感、人机指引来维系品牌风格的一致性，从而提升高创控制产品的品牌形象。
DURABLE: Feel the quality and reliability; INTUITIVE: Enjoy the intuitive use; RATIONAL: Follow the function and rational form
耐用：体现高品质与可靠性；精妙：享受且易用；理性：造型遵循功能，形式更加合理DESIGN LANGUAGE

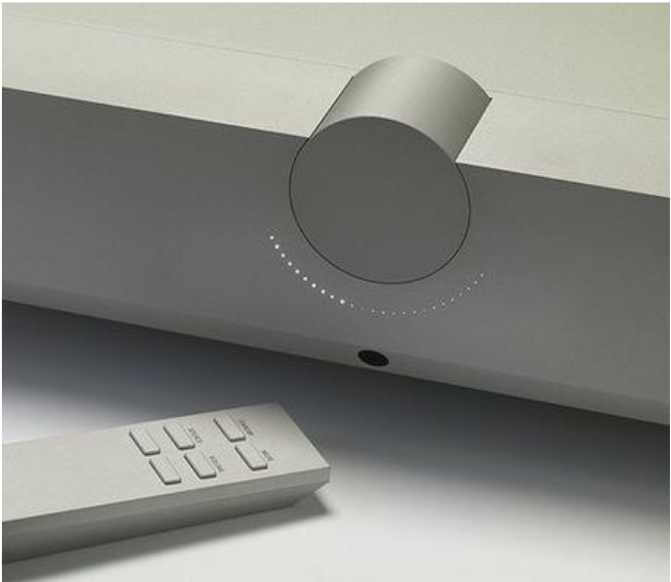

如实体量 Refined Solidity

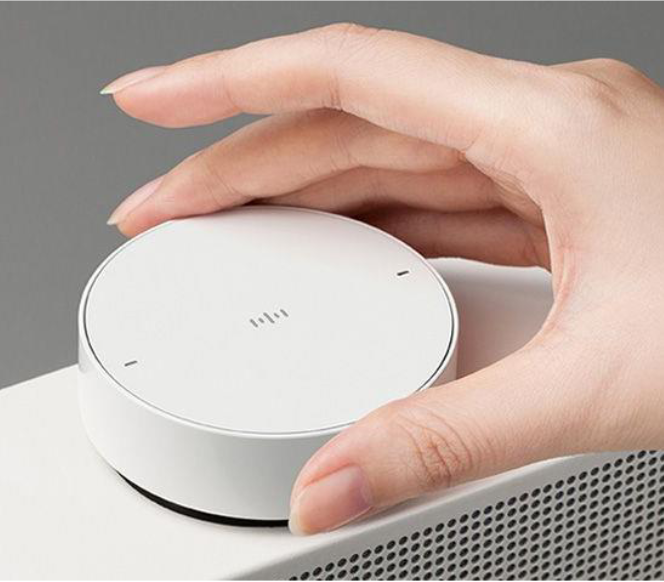

反馈触感 Tangible Feedback

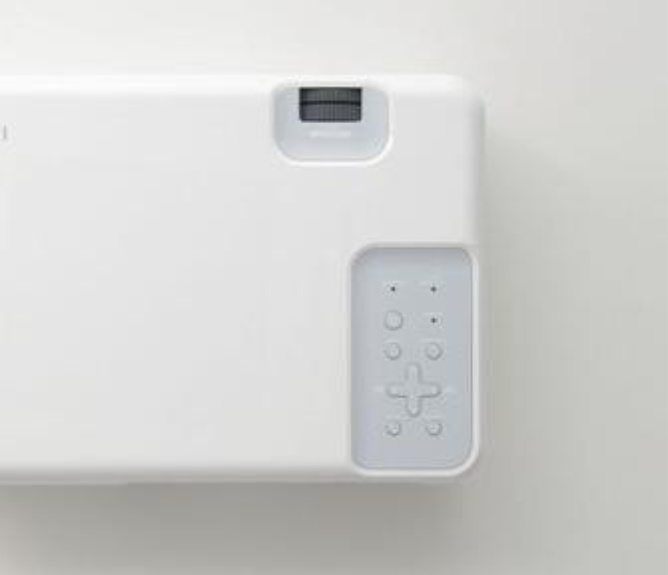

留白空间 Minimal Logic

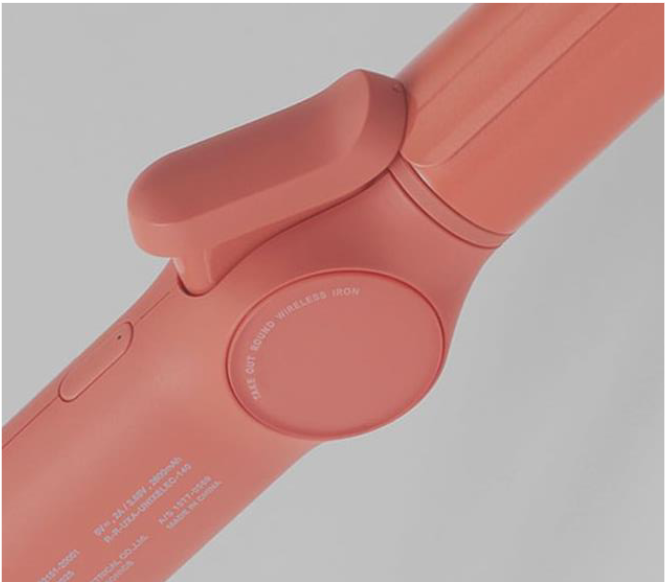

人机指引 Inviting Guidance
The rationality and wisdom conveyed by the appearance of category Servotronix products continue to encourage users to explore. The overall impression is simple and powerful. The transition of design style features is smooth, and the design details better guide users from vision and touch, focus on convenient use, and provide an efficient and intuitive use experience.
高创运动控制品牌各品类产品外观传达出的理性和智慧不断鼓励用户探索。整体印象简洁且具有力量感。设计风格特征过渡流畅，设计的细节从视觉和触觉更好的指引用户，以方便使用为关注焦点，提供高效而直观的使用体验。
BASIC SHAPE DEFINITION
PURE APPEARANCE
纯净的外观
纯净的外观
The product design is characterized by a flat surface, which is smooth without material changes.
产品设计整体造型以平整的表面为特征，表面平滑，没有多余的材质的变化。

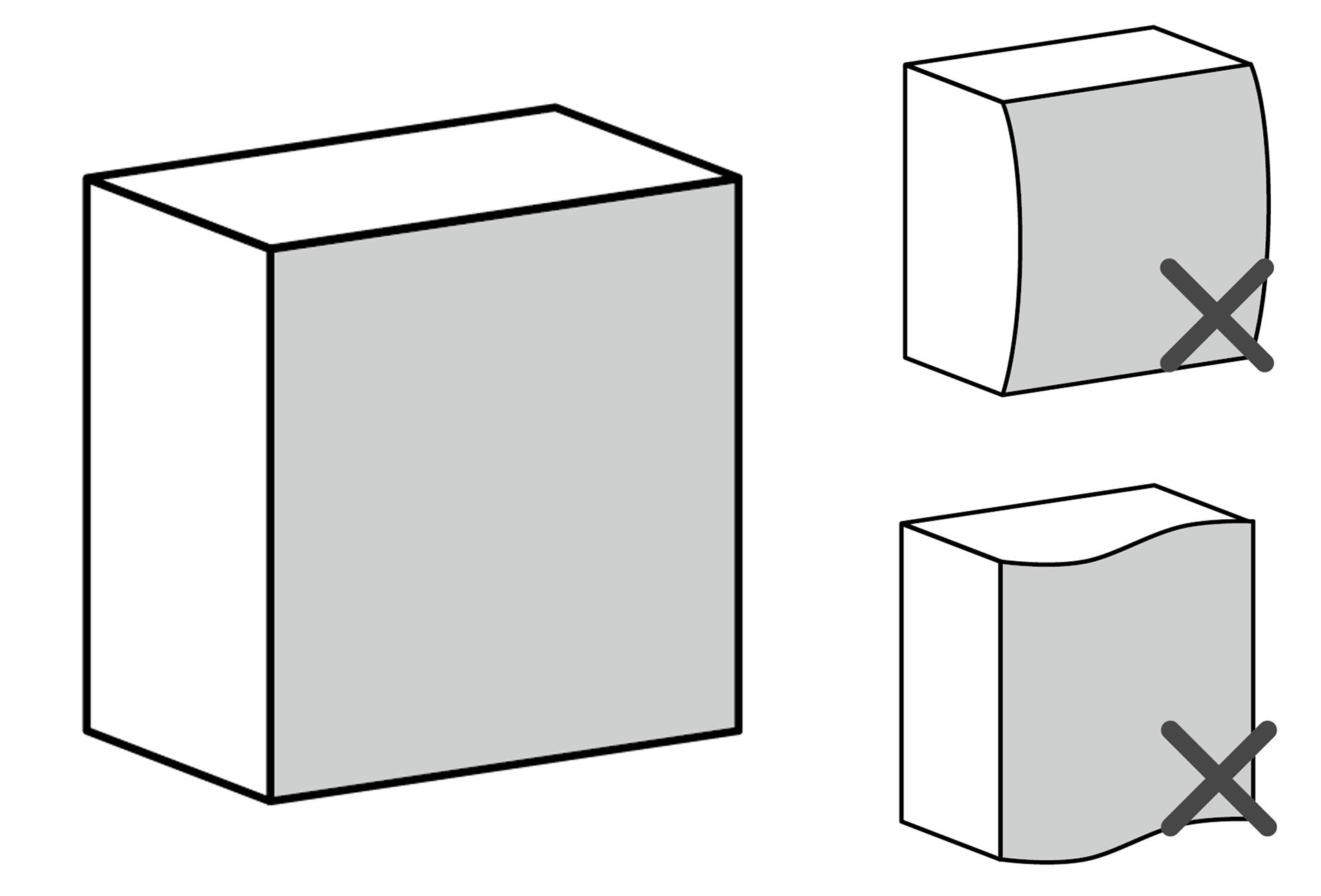

In order to maintain the flatness of the surface, avoid curved design surfaces on both the front and top.
为了保持表面的平整性，前外观表面和顶部表面不允许出现双重弧度设计或不规则弧度设计。
SIDE DESIGN
侧面设计
Smooth and accurate contour is an important index of Servotronix motion control brand design. The radius edges and flat surface ensure the concise design concept.
平稳精确的轮廓是高创运动控制品牌设计的重要指标，圆角轮廓和平整的表面保证了简洁的设计理念。
In order to be consistent with the main design style to the greatest extent, the four corners should be designed into the same perfect radii according to the principle of unified design language.
为了最大限度地与主要设计风格保持一致，应按照统一的设计语言原则将四个角都设计为相同的完美的弧度。
FEATURE SHAPE DEFINITION
FEATURE DESIGN
外观造型特征

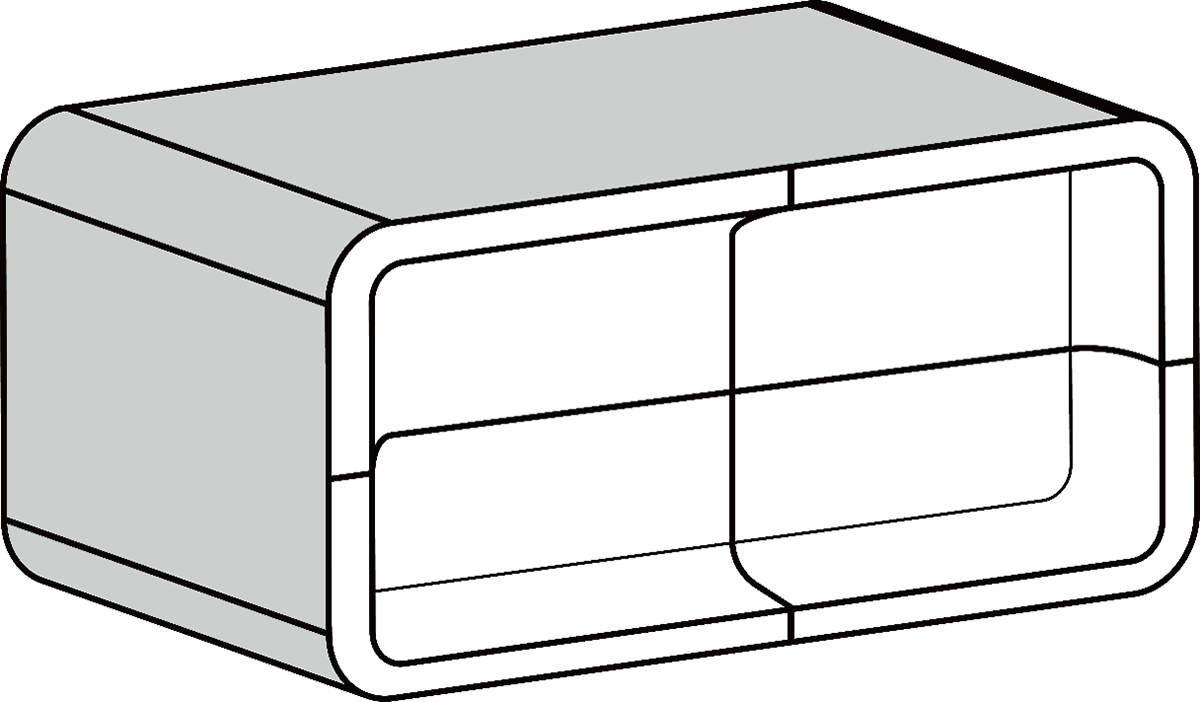

Typically, the appearance of a product requires the addition of a sunken surface design with soft transitions at the borders. The raised edge wireframe outline can weaken the heaviness of the overall body shape in order to show the unique spirituality of the Servotronix brand.
通常情况下，产品的外观需增加边界柔和过渡的下沉面设计。凸起的边缘线框勾勒可以弱化整体体块造型的沉重感，以展现高创品牌特有的灵性。
If product space does not allow the above feature design, a simplified design approach can be used.
在产品空间不允许情况下，可采用简化的设计方式。

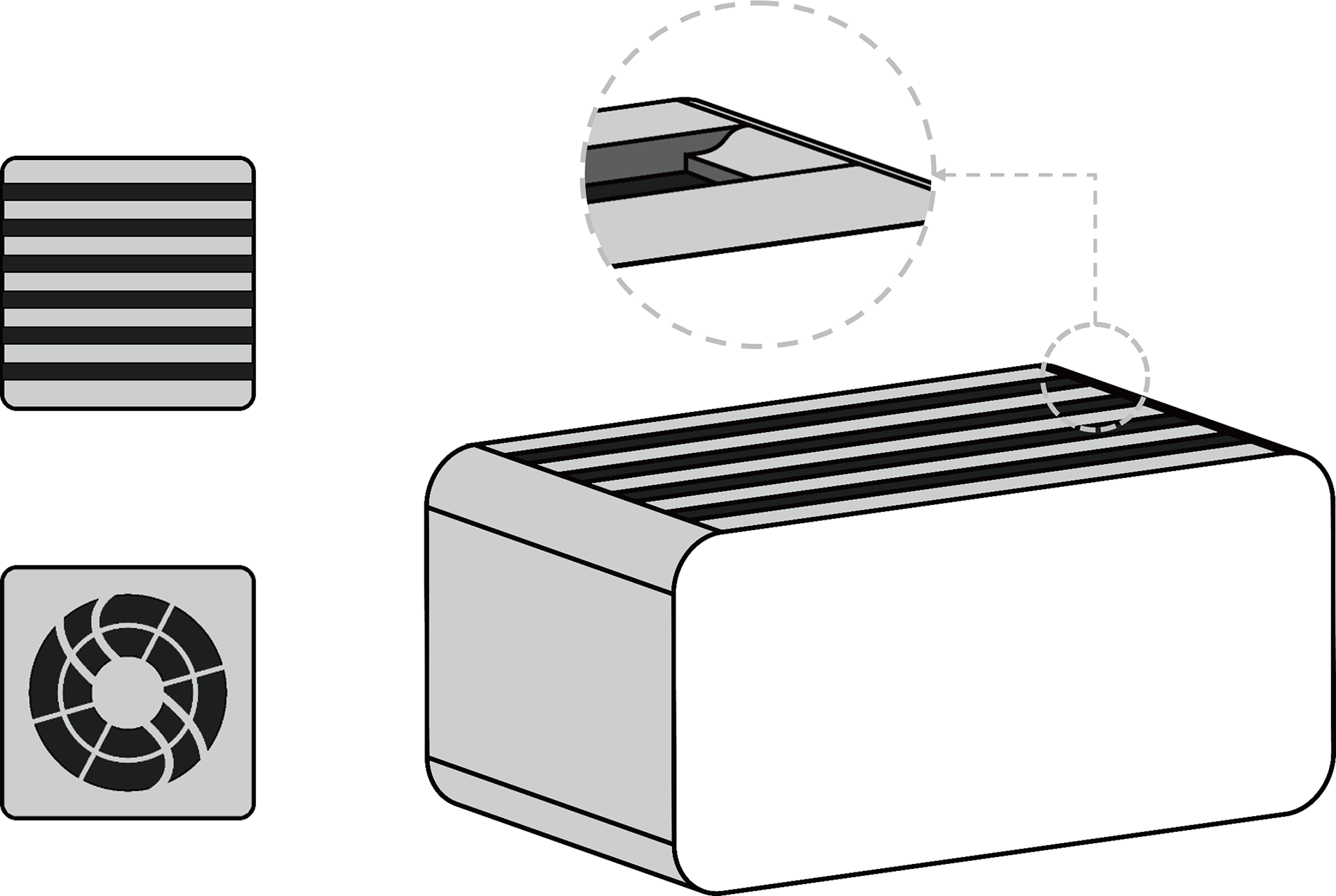

VENTILATION GRILLE DESIGN
出风口设计
Passive ventilation grille: uniform and consistent bar shape (without internal reinforcement) is required, and both sides of the edge need to be in the form of a soft transition.
被动式散热格栅：需采用均匀一致的条状造型（不含内部加强筋），两侧的边缘均需采用柔和的过渡形式。
Active ventilation grille: circular shape (concentric with the fan) the shape is required to use a soft transition form.
主动式散热格栅：正圆造型（与风扇同心）周圈均需采用柔和的过渡形式。
FORM AND APPLICATION OF LOGO

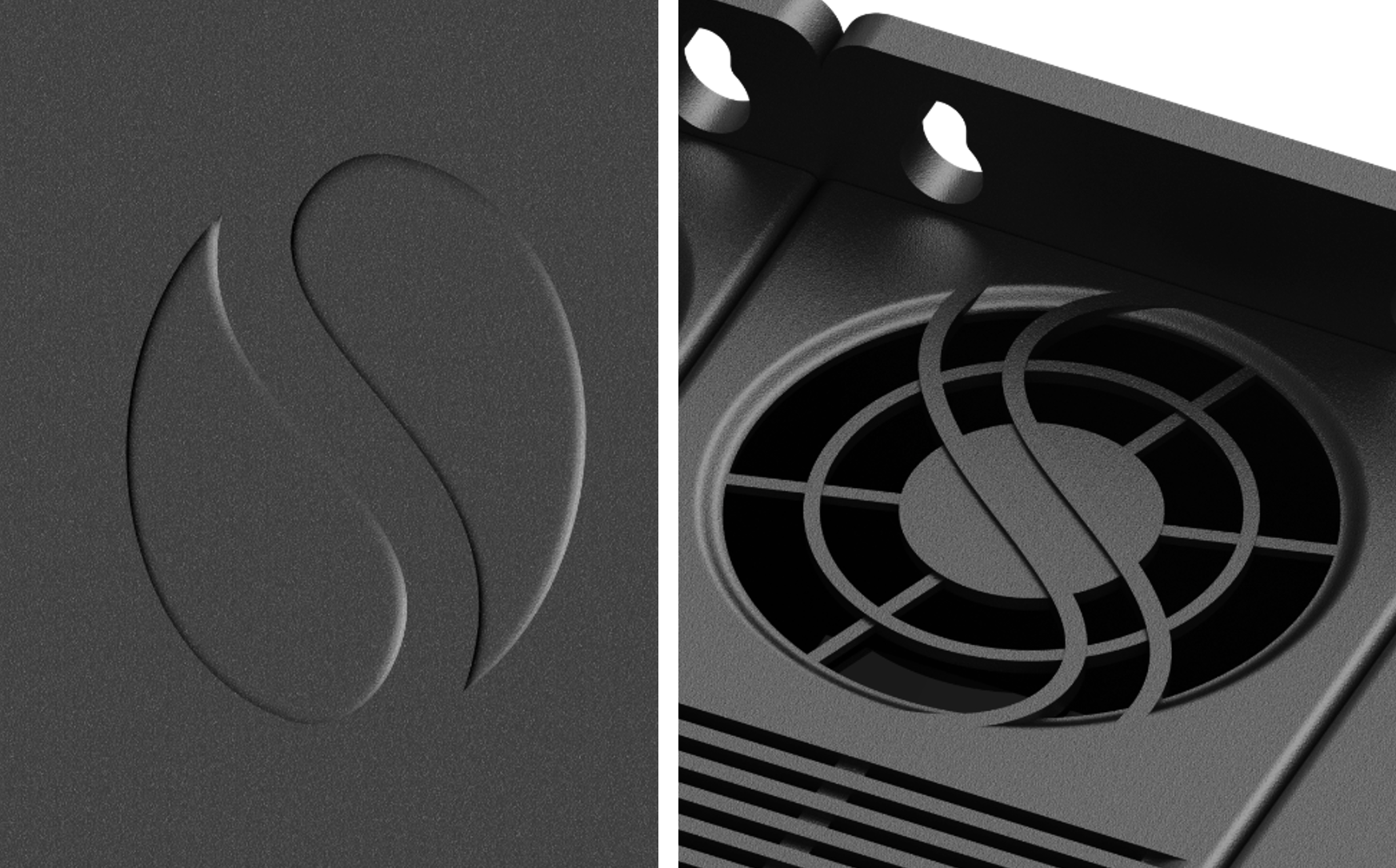

There are two kinds of LOGO form applications, concave engraved LOGO form, and active ventilation grille LOGO form.
现有两种LOGO的形态应用，凹刻LOGO形态和主动式散热LOGO格栅形态。
Normally, it is located on the side or top of the product (not the main view).
通常情况下，LOGO形态的应用位于产品的侧面或者顶部（非主要视图）。
Handheld products or other cases where there is not enough space on the side can be placed on the back of the product.
手持类产品或者其他侧面空间不足的情况下可置于产品的背部。
SERVOTRONIX PX300/EX300
PROGRAMMABLE LOGIC CONTROLLER

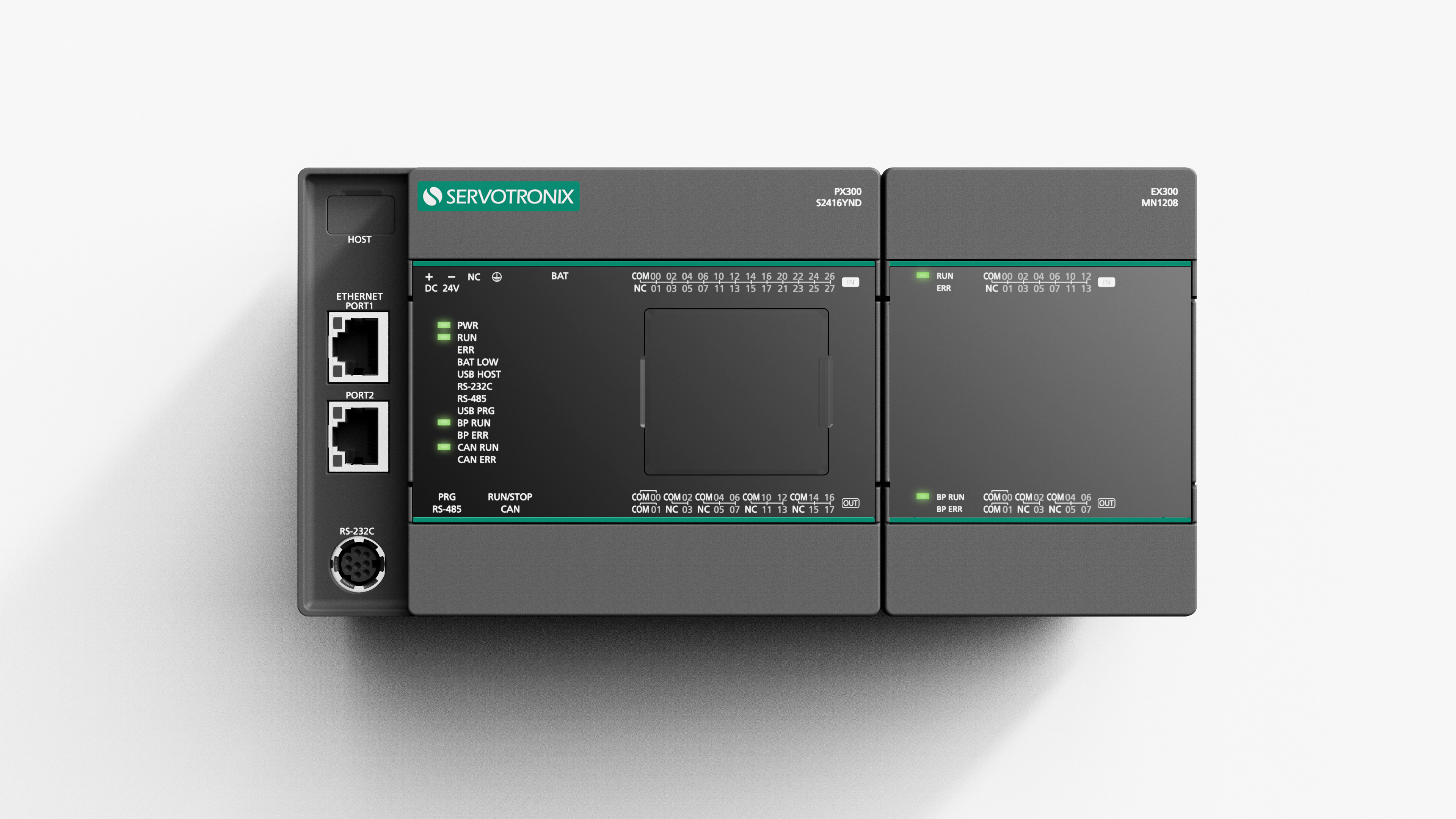

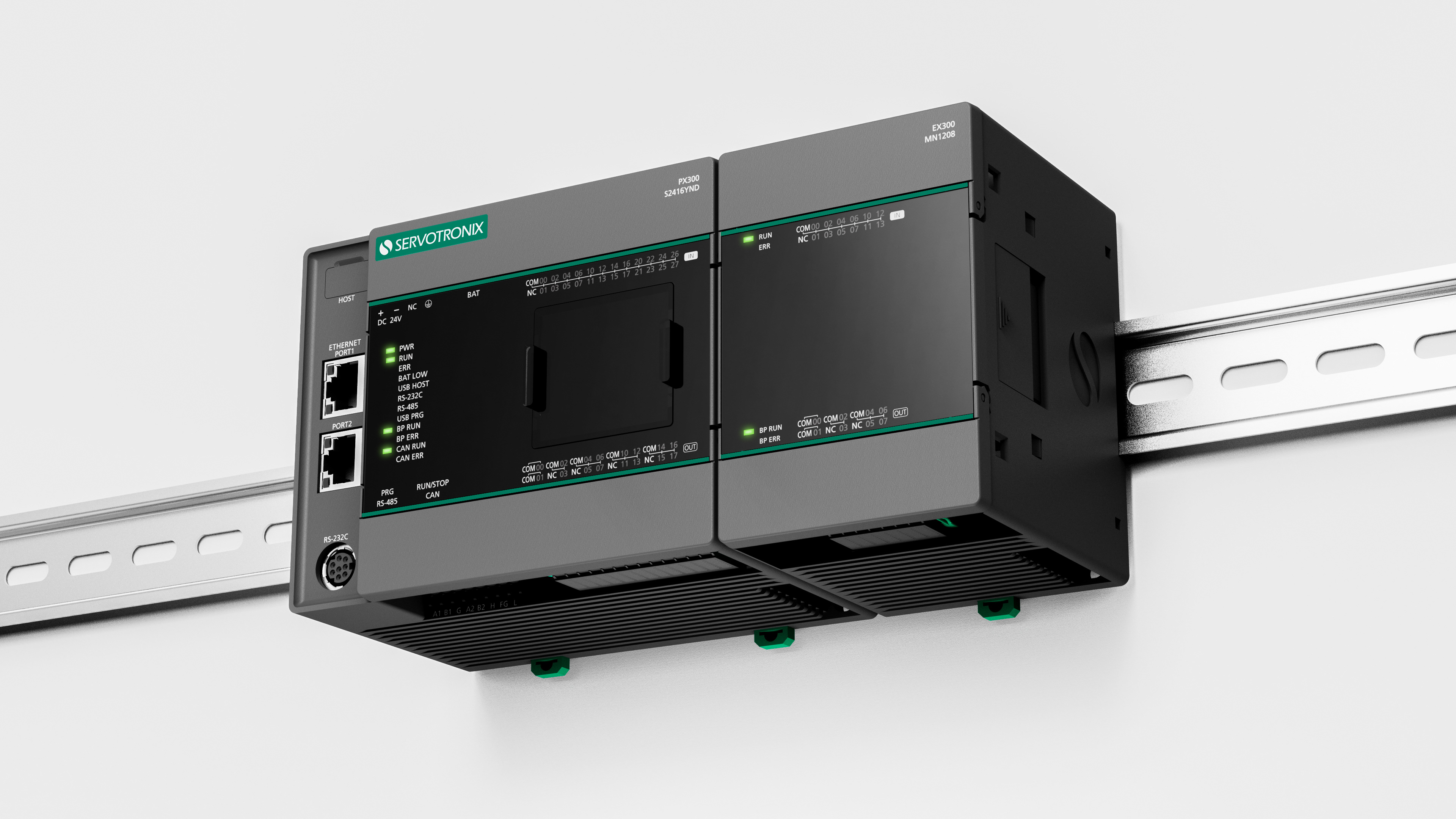

These programmable logic controllers (PLC) provide automatic control of machinery in the factory. Primarily for installation in electrical enclosures, they feature a smaller form factor in order to facilitate installation in tight spaces and the replacement of conventional equipment. A high-visibility font was adopted for function labeling. The controller is designed for a wide range of users, including beginners, to support "easy to use," for example by allowing the lid to be flipped up and down more than 90° to facilitate wiring work.
可编程的控制器为工厂的机器提供自动控制。主要用于安装在电气外壳中，它们具有较小的外形尺寸，以便于在狭小的空间内安装和替换传统设备。功能标签采用了高能见度的字体。为包括初学者在内的广大用户设计了控制器，以支持 "易于使用"，例如，允许上下翻开盖子超过90°以方便接线工作。

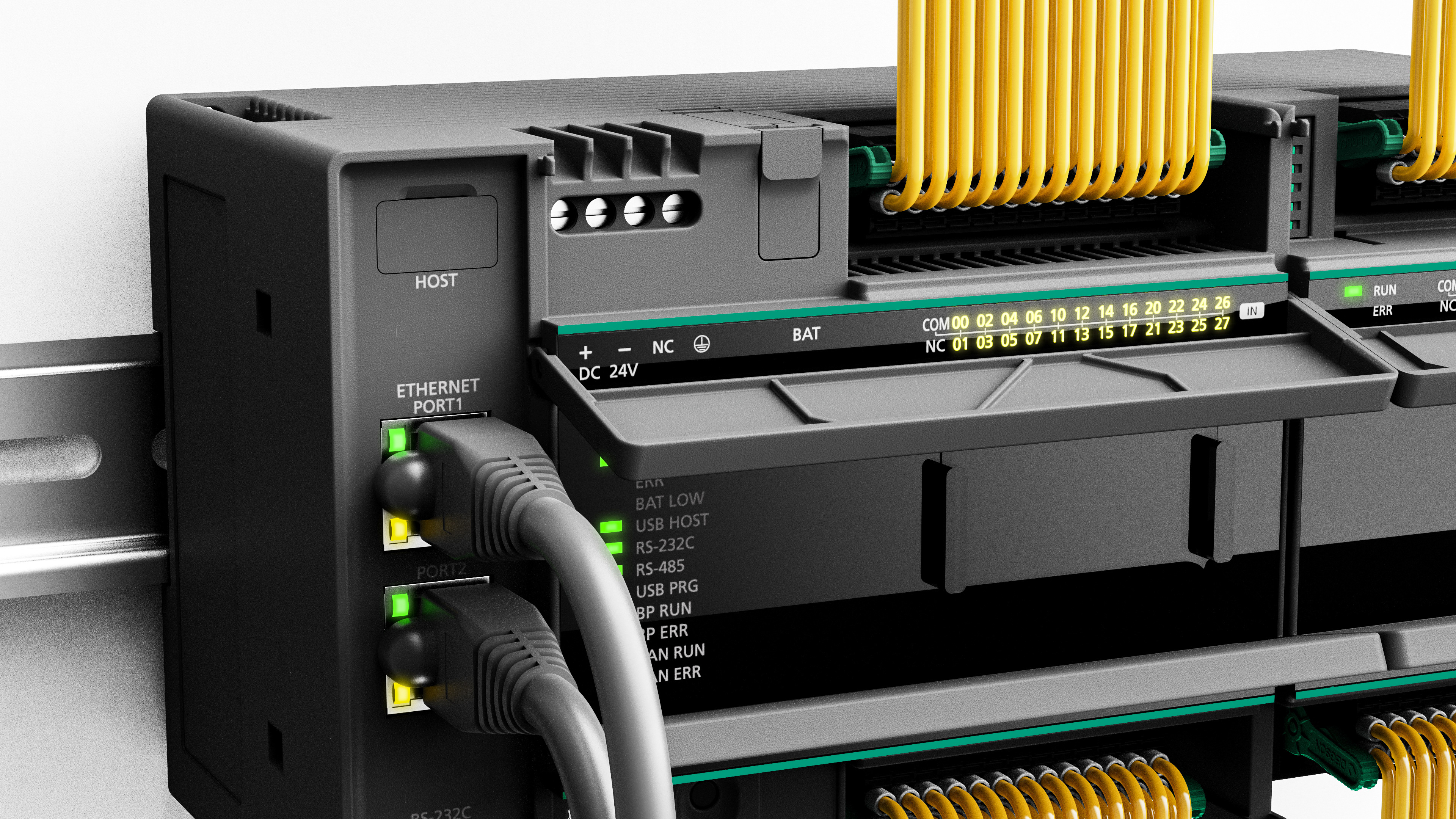

Multi-module Connection 多模块组合连接

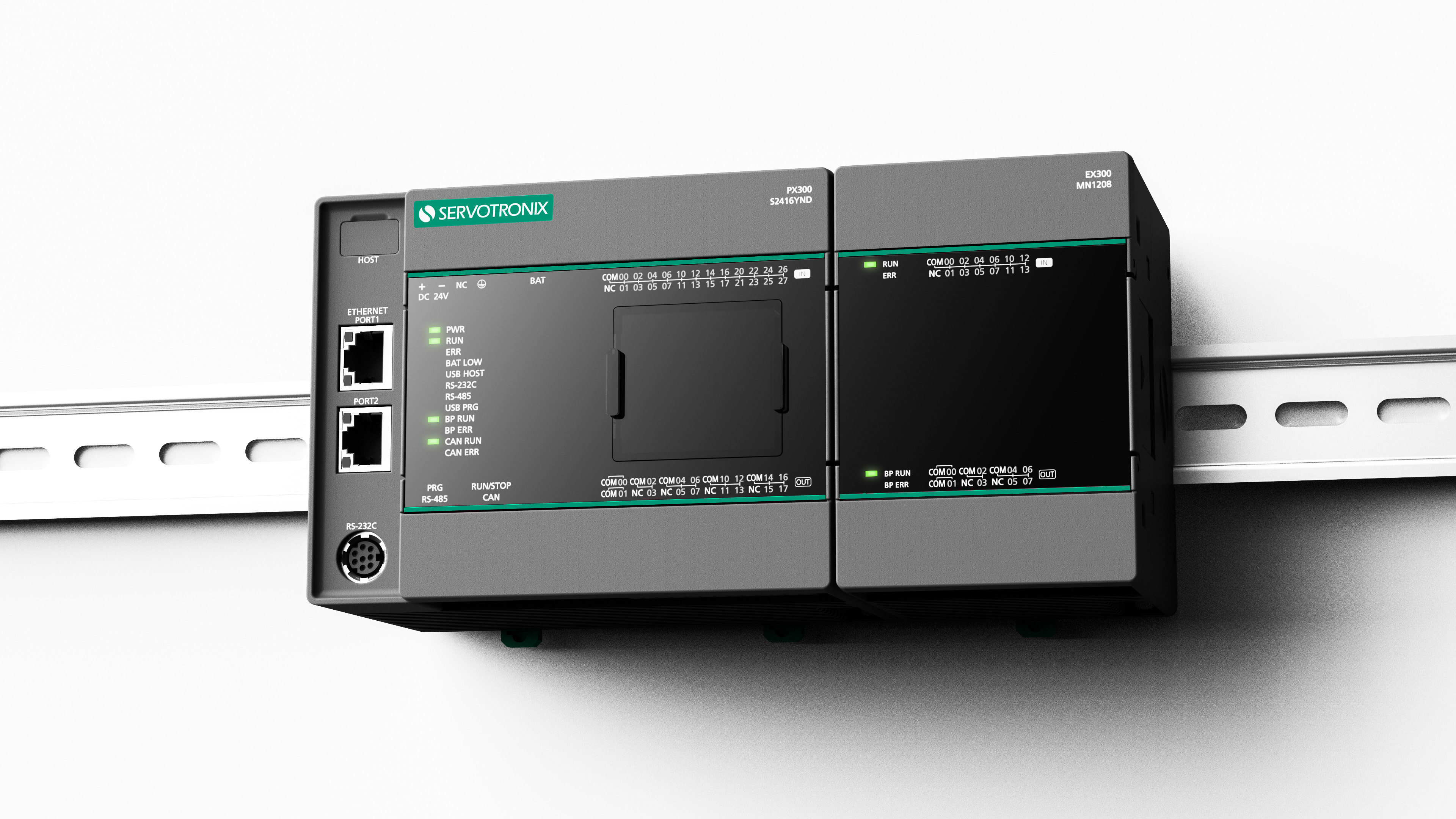

Flip the cover to open the wiring port and control switch 翻盖打开接线口及控制开关

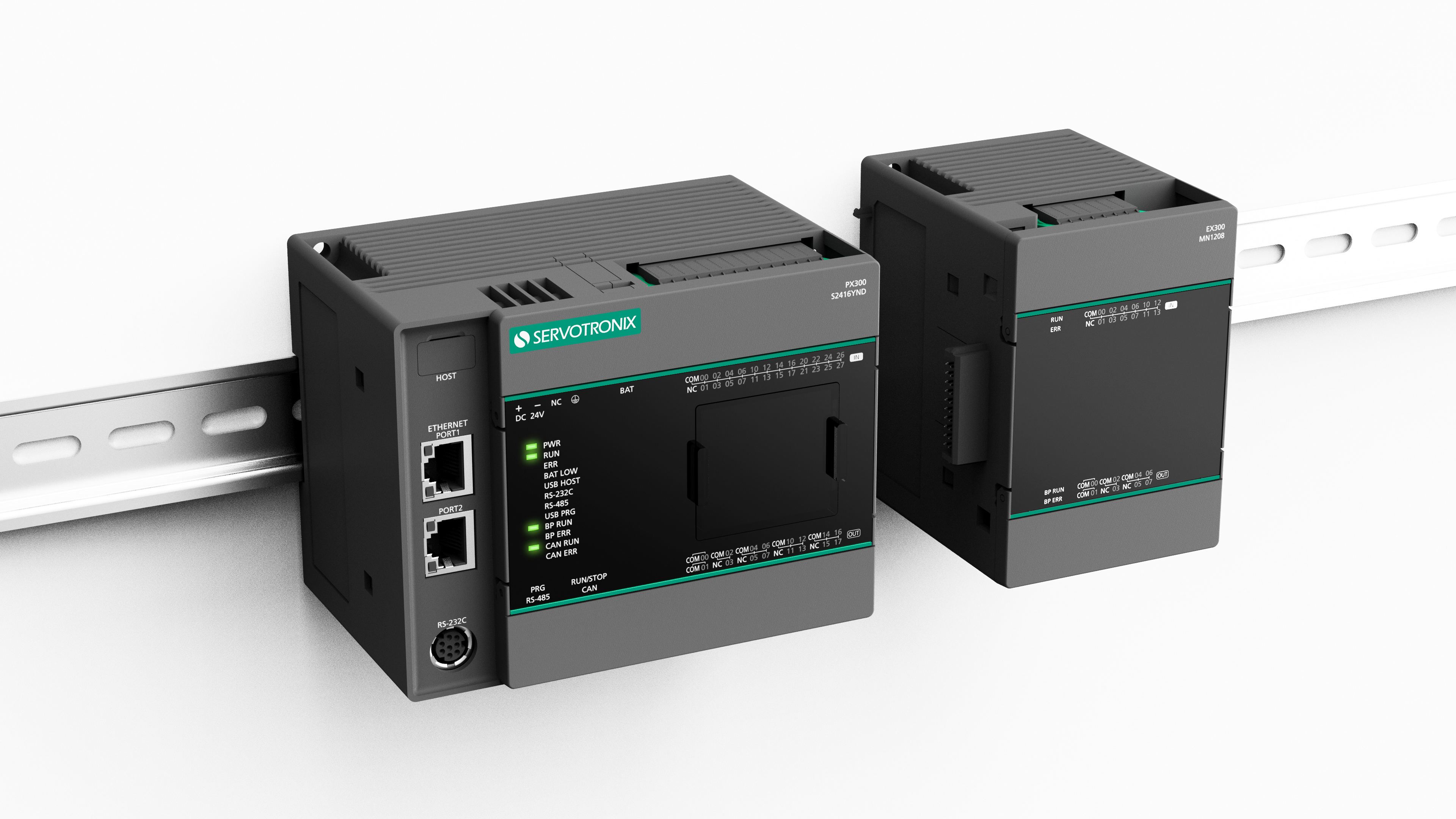

Easy Connection & Protective Covers, different units can be quickly connected together by side joints. The wiring position is protected by rotatable covers. Preventing accidental touch and keeping a simple and clean visual.
易于连接和保护罩，不同的单元可以通过侧面的接头快速连接在一起。接线位置由可旋转的盖子保护。防止意外的触摸，并保持简单和干净的视觉效果。

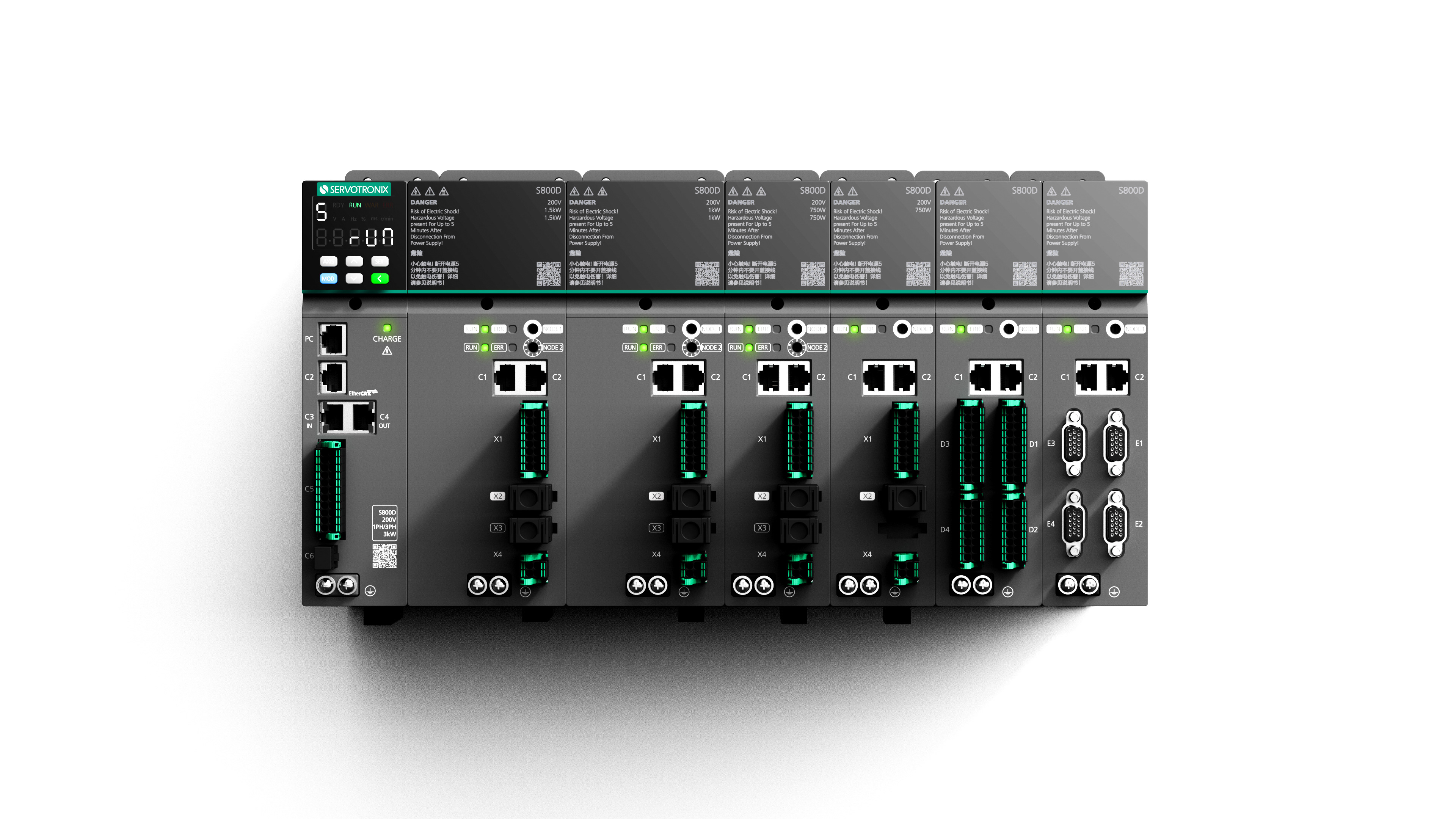

SERVOTRONIX S800D
SERVO DRIVES

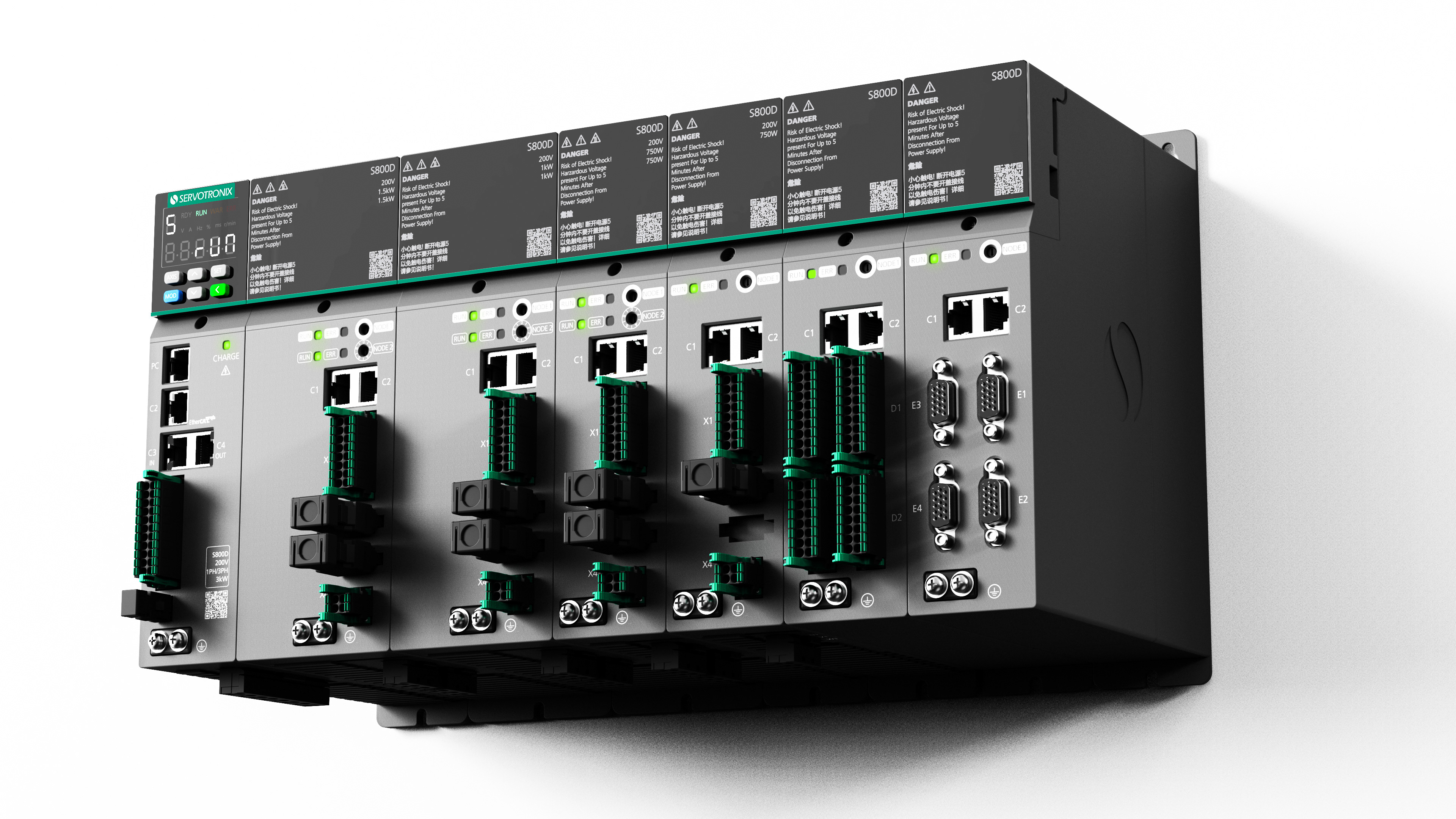

The S800D is a multi-axis servo system. It has unparalleled adaptability, first, it can adapt to various power of the motor; And in communication, it adapts to a variety of communication protocols, industrial Ethernet; The small body allows sit to be mounted in a variety of control cabinets. This series of products improve the response speed of the control loop and the high-precision encoder. At the same time, it has the ability of high speed and high precision, so that it can complete smooth and accurate motion control in extreme time. In addition, online automatic configuration parameters, one-click upgrades, and other functions make it a very good user experience.
S800D是一个多轴伺服系统。它具有无与伦比的适应性，首先它可以适应各种功率的电机；而在通讯方面，它适应各种通讯协议，工业以太网；小巧的机身使它可以安装在各种控制柜中。该系列产品提高了控制回路和高精度编码器的响应速度。同时，它具有高速、高精度的能力，可以在极短的时间内完成平稳、准确的运动控制。此外，在线自动配置参数、一键升级等功能，使其具有非常好的使用体验。
Front View 正视图
Flip the cover to open the wiring port 翻盖打开接线口

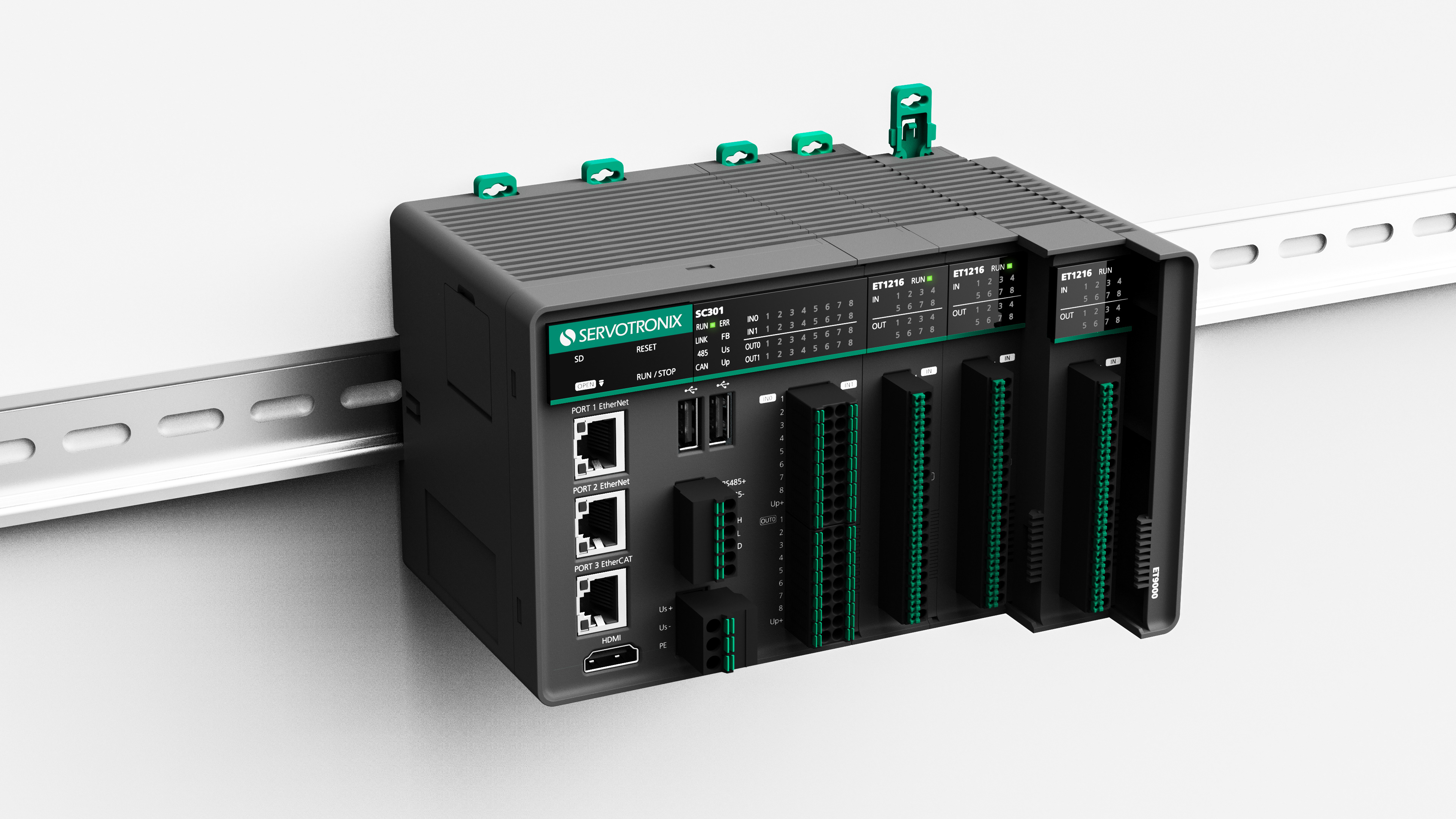

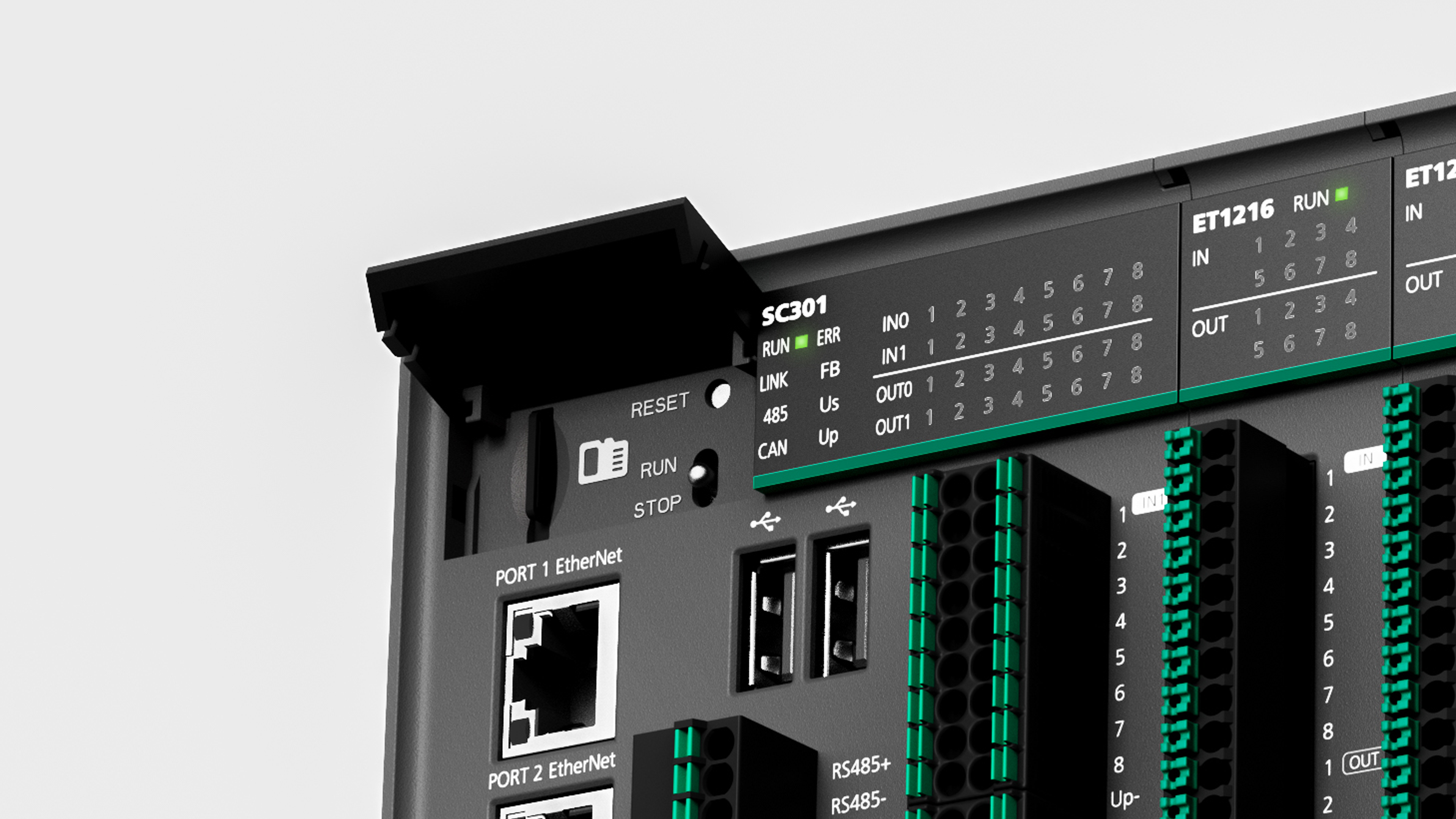

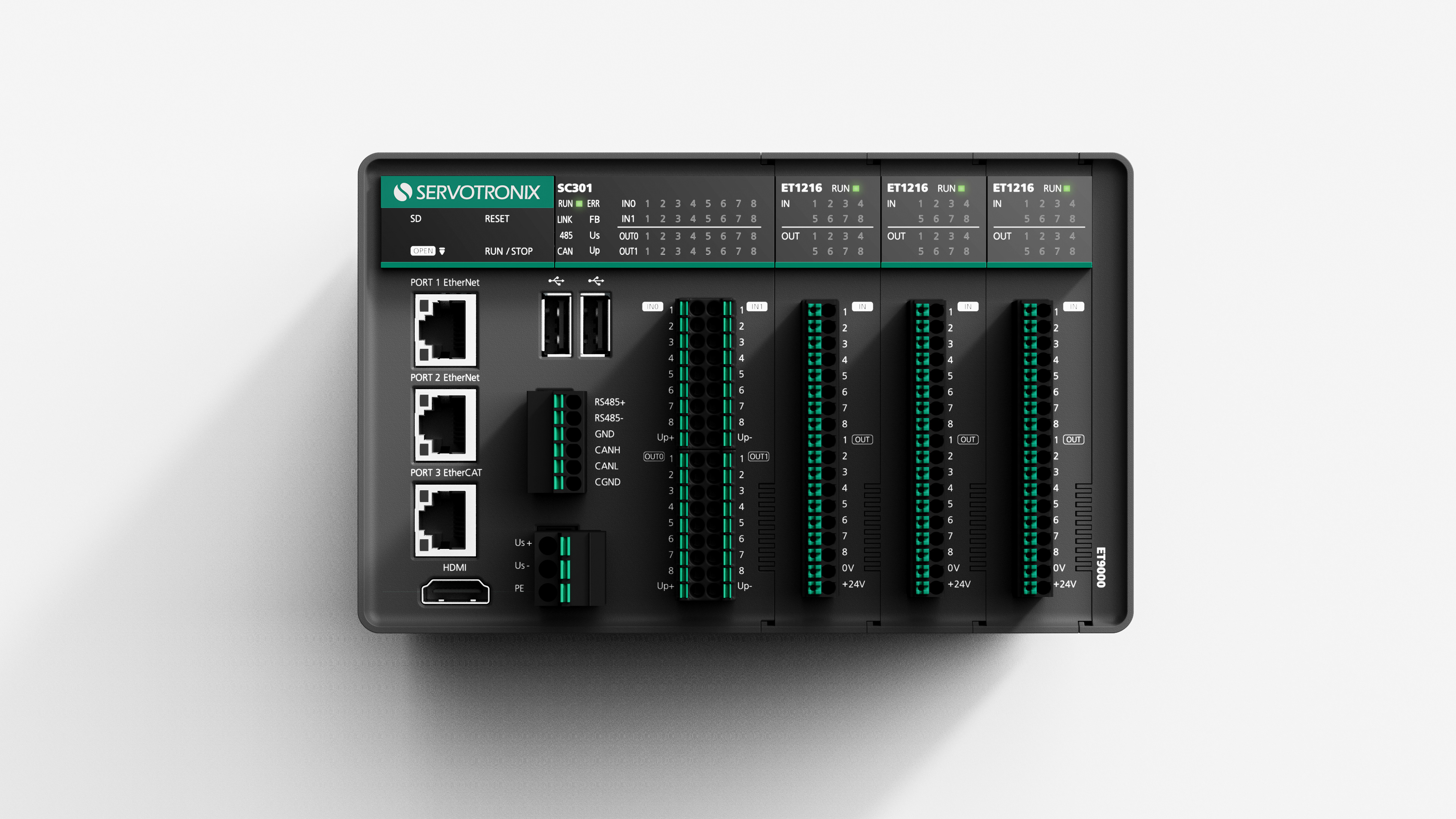

SERVOTRONIX SC301
I/O CONTROLLER

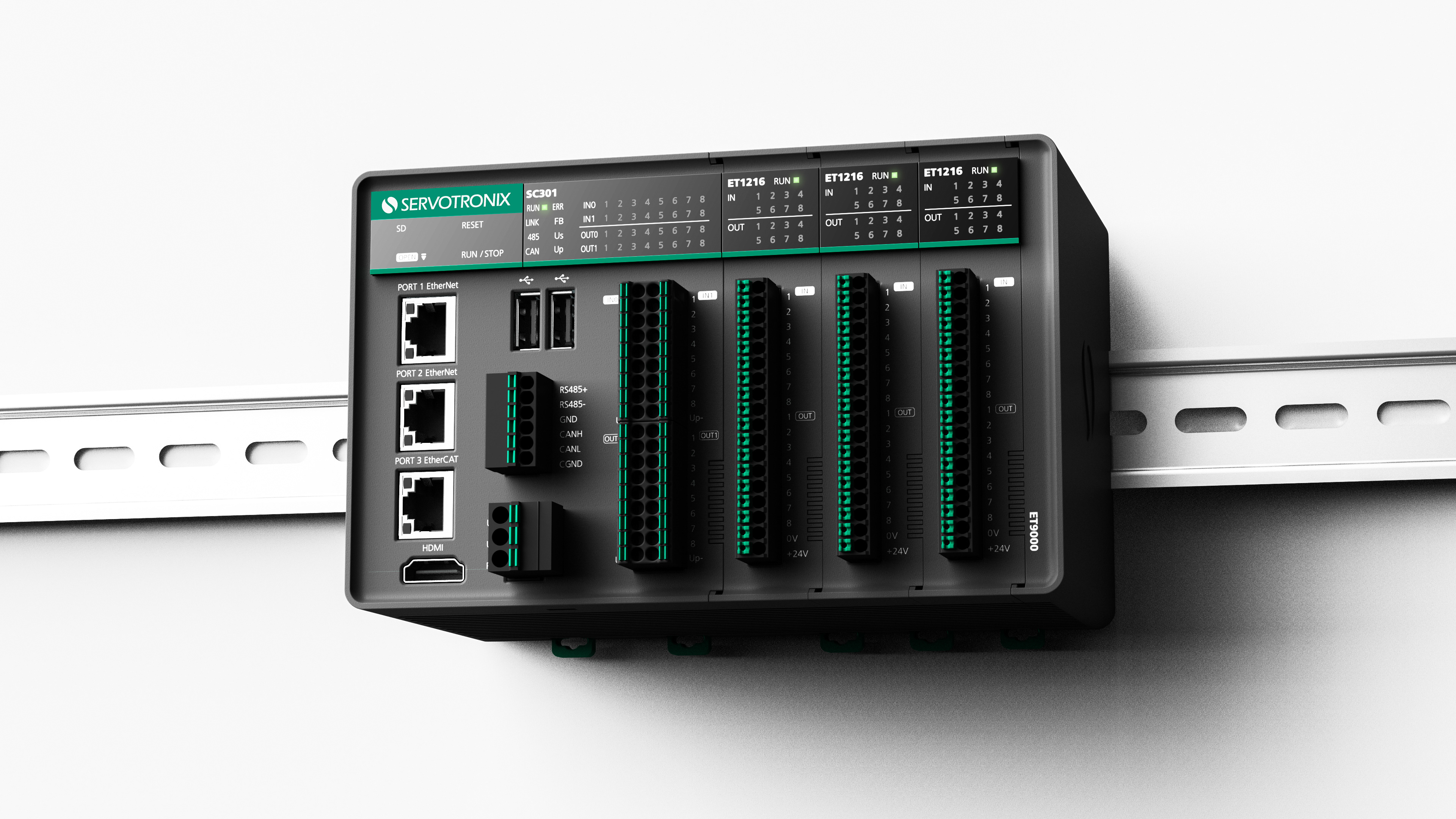

The soft MC Compact 301 series is a range of compact motor controllers for cost-sensitive and space-limited industrial applications. Equipped with CODESYS real-time core and standard IEC61131-3 specification programming language, it provides an open and modular programming environment. Linux operating system makes it highly real-time, compact, and stable. It has a powerful motion control function and supports multiple communication protocols.
SC301系列是一系列紧凑的电机控制器，适用于成本敏感和空间有限的工业应用。它配备了CODESYS实时内核和标准的IEC61131-3规范的编程语言，提供了一个开放和模块化的编程环境。Linux操作系统使其具有高度实时性、紧凑性和稳定性。它具有强大的运动控制功能，支持多种通信协议。
